Obsidian PA6+CF
Obsidian PA6+CF

Obsidian PA6+CF

SKU: NYL13CF101000BK00

Regular price
$130.00
Sale price
$130.00
Regular price
$0.00

Benefits of Obsidian PA6+CF

  • Excellent alternative to Onyx that allows our customers to save money when using your Markforged printer.
  • >30% savings vs. Markforged Onyx™
  • Excellent strength and stiffness
  • Resistant to aliphatic hydrocarbons (oil/gas/lubricants)
  • Superior dimensional stability (low warp/shrink/CTE)
  • Compatible with Markforged FX20, X7, X5, X3, Mark Two, Onyx Pro, and Onyx One printers
  • Strongly recommend this material to be printed through a hardened steel nozzle rather than a softer metal.
Color Code: Black
Diameter:
Reel Size:
In Stock

Obsidian PA6+CF

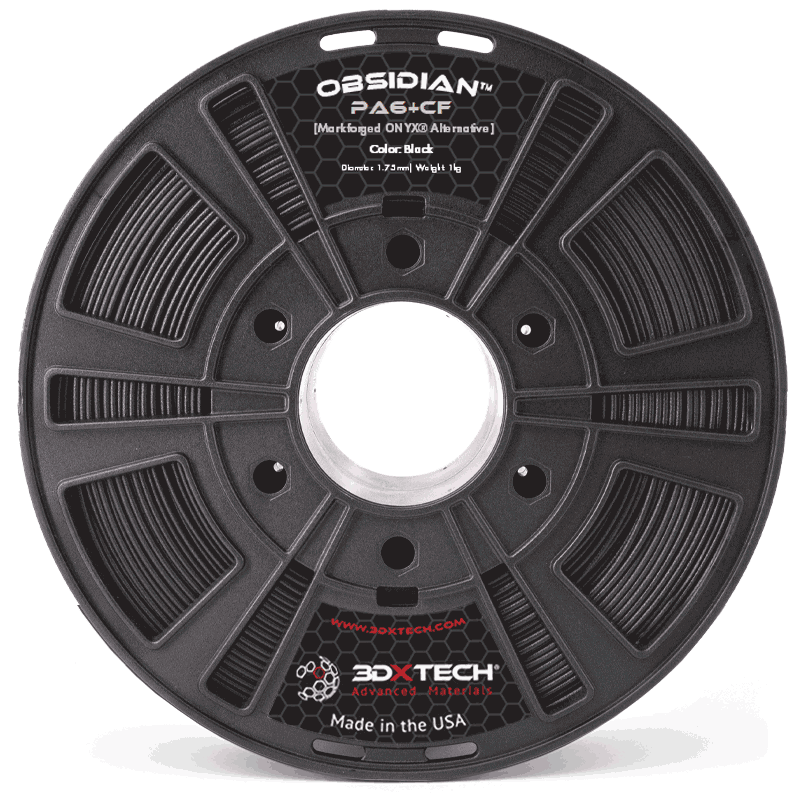

Obsidian PA6+CF filament was formulated to be a lower-cost Markforged Onyx alternative suitable for all Markforged printers. We developed this material after extensive analysis and testing on our own in-house Markforged printer and many outside beta testers. The result is a seamless printing experience that produces parts with an outstanding appearance and excellent mechanical properties. Made using premium high-modulus carbon fiber and PA6 copolymer, Obsidian™ is an excellent alternative to Onyx that allows our customers to save money when using your Markforged printer.

Don’t have a Markforged printer? That’s no problem – Obsidian is also compatible with all non-Markforged printers that are suitable for printing PA6+CF. Take advantage of the excellent strength, stiffness, and appearance of this specialty material without over spending on Markforged Onyx.

MADE IN THE USA

We manufacture all of our filaments in our 68,000 ft² manufacturing facility (located in Grand Rapids, Michigan) using state-of-the-art equipment and processes. Our goal continues to be to make the most innovative filaments on the market – targeting difficult end-use applications.

Print Recommendations

365-390°C
Extruder Temp
265-285C
140-160°C
Bed Temp
90-110C
Recommended
Heated Chamber
Recommended
0.4mm diameter minimum
Nozzle Specs
Hardened Steel Nozzle
0.10mm or higher
Layer Height
.10mm or higher
65°C for 4 hours
Drying Specs
90C for 4 hours
RECOMMENDED

You May Also Like

Make confident choices and discover the best printing solutions.
Customer Reviews
2.8 Based on 4 Reviews
5 ★
25%
1
4 ★
25%
1
3 ★
0%
0
2 ★
0%
0
1 ★
50%
2
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
FS
02/27/2025
Florian S.
Germany

Useful alternative, but with some limitations

Due to the high cost of onyx, I tried out several alternative materials for our Markforged Onyx One and Mark Two Printers , Obsidian was one of them In general, we use 3D printing to produce parts for simple to highly complex clamping fixtures for part measurement (automotive, HVAC) as well as parts for automation Two points that leave a somewhat bitter taste with regard to Obsidian is, firstly, the fact that a heatable print bed is specified as necessary, but the Markforged printers do not even have one. In general, it is not possible to intervene in the temperature parameters of Markforged printers, which leaves the user somewhat powerless in this case Secondly, the need for pre-drying is not mentioned on the technical data sheet, the box or the spool itself, but is absolutely essential, as without pre-drying the material tends to string heavily. With a correctly pre-dried material, the purge line is smooth and shiny, slight waviness is an indicator that moisture is still present Smaller details such as lettering in the XY plane are printed more uncleanly than with Onyx, font sizes under 5mm are not recommended. There were no noticeable problems with lettering in the Z plane I have used 8 spools of Obsidian so far and will continue to use it for our measuring fixture construction due to the much more attractive price.

AT
01/19/2025
Advantage T.
United States

Solid Filament - works for me

I didn't have issues printing Obsidian on my Bambu X1. I adjusted pressure advance (0.012) and Flow ratio (0.92) and it prints perfect. the surface finish feels a little it more rough to the touch (like fine grit sand paper) than Onyx, but looks just as good.

DF
12/03/2024
David F.
Germany

Bad alternative

I also bought two rolls to try. It has the same issue as others: bad stringing, oozing, and clocking the nozzle several times. With the fixed parameters of an MF printer, it is not possible to find a good setting. Waste of time and money. 3dxtech should refund or give credit for different materials...

12/05/2024

3DXTECH

Hi David. Thank you for your feedback. We are sorry you had a bad experience with our Obsidian. If you havent already, please contact us and we can issue you a refund or give you credit on your next order. Thanks!

R
09/16/2024
RJ
United States

Terrible stringing and print quality compared to Onyx

I purchased 2 rolls, they came in a nice vacuum-sealed bag. I decided to give this PA-6 Obsidian a try since I was down to 2 rolls of Oynx. The first roll of the Obsidian prints was bad, stringing all over and oozing from the nozzle. So I threw it in the dryer at 85c for 48hrs. I used the second roll and the same thing happened. I had more terrible stringing when printing. So I put both rolls in the oven at 100c for 12hrs, which didn't help. I left the rolls in for 2 more days at the same temp in the oven, and still have stringing. I must have gotten 2 bad rolls but when I used a roll of Oynx, it printed perfectly fine. I don't think I will use this filament again after wasting $260 for two rolls.

11/11/2024

3DXTECH

Hi RJ. Thank you for your feedback on our Obsidian PA 6. We are very sorry you had a negative experience with this product. We have heard the same from a few of our customers and are continuously making improvements in our processes to overcome these issues. We hope you are willing to give us another chance.
